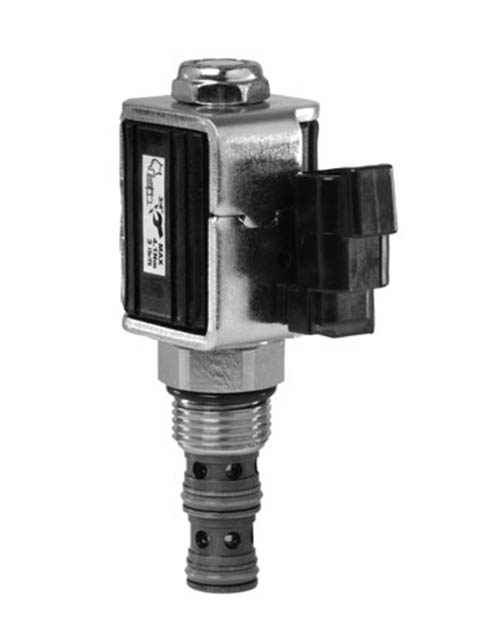

DSH103 Solenoid Valve
Spool Type - 3-Way Solenoid Valve for Size 10, 3-way Cavity (Coil Not Included)
| Part #: DSH103BT | Manufacturer: Parker - Hydraulic Cartridge Systems Division |
|
Price/UOM: $124.74
|
Availability: In Stock |
| UOM: EACH |
DSH103 Series Solenoid Valve - Spool Type - 3-Way (Coil Not Included)
Email this page to a friend
Product Attributes
| Rated Flow: | 30.0 LPM (8.0 GPM) |
| Leakage: | 250 cc/min. (15 in3/min.) at 350 Bar (5000 PSI) |
| Max Pressure: | 350 Bar (5000 PSI) |
| Seals: | âDâ-Ring |
| Screen: | None |
| Operating Temperature: | -45C to +93.3C (-50F to +200F) |
| Override Type: | Push & Twist (N.C. & N.O.) |
| Common Cavity: | Size 10, 3-way |
| Valve Body: | B10-3 |
| UOM: | EACH |
| Valve Type: | Solenoid Valve |
| Series: | DSH103 |
| Valve Type Detail: | Spool Type - 3-Way |
| Port: | None - Cartridge Only |
| Valve Style: | 3-way or 4-way spool (see catalog for flow paths) |
| Common Cavity Type: | Size 10, 3-way |
| Parker Group: | Hydraulic |
| Parker Division: | Hydraulic Cartridge Systems |
Part Number Tags
DSH103BT
